Edge Positioning 4pcs SMT SMD Splice Tape For Electronic Assembly M19 Series

Product Categories
Shenzhen Kanghongjin Electronics Co., Ltd
Contact Now

Edge Positioning 4pcs SMT SMD Splice Tape For Electronic Assembly M19 Series

  • 1
  • 2
  • 3

Brand Name : KangHongJin

Model Number : M19 series

Certification : RoHS

Place of Origin : Guangdong, China

Product Name : M19 series

Material : PET

High Light : Splicing tape, SMT tape, Universal PET SMT Single Splice Tape, Jointing carrier tapes in the SMT process, Factory cheap price smt splice tape

Contact Now

Edge Positioning 4pcs SMT SMD Splice Tape For Electronic Assembly M19 Series



DESCRIPTION

M19 series splice tape is used for jointing carrier tapes in the SMT process, It is made of 4 tapes and
release paper with alignment guide design, and the tape is made by our produced patent material
with superior adhesion.



Part (reel)
Dimensions (pc)
 Material
Package
M1908 (8mm)

4.5/2/2/4.5mm x 40mm

 PET 500pcs/box



APPLICATION ADVANTAGES

1. Strips of PET tape used to join

1. Increase Pick and Place machine output

    8-88mm SMT carrier tapes

    by 5% - 30%

2. Suitable for Univeral, such as Juki,

2. Reduce reel change downtime

    Sanyo, Hitachi machines and so on.

3. Decrease machine abrasion by reducing

2. 4 splice tapes design for

    the need to reload the feeder
    a more realiable splicing 4. Guide alignment, easy operation
      without the use of auxiliary tools

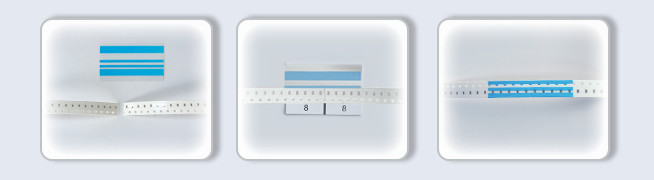

INSTRUCTIONS

1. Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the splice guide placement

4. Fold over the other strip to the underside of the carrier tape and press firmly

5. Remove the guide placement from joined carrier tapes

6. Remove and discard the clear plastic cover to complete the splice
7. Press the tape on carrier tapes for the realiable splicing



Edge Positioning 4pcs SMT SMD Splice Tape For Electronic Assembly M19 Series
