Conductive Red Splicing Tape SMT Joint Tape With Intelligent Feeder

Product Categories

Shenzhen Kanghongjin Electronics Co., Ltd

Contact Now

Name: Conductive Red Splicing Tape SMT Joint Tape With Intelligent Feeder
Brand: KangHongJin
Price: 1 USD

Brand Name : KangHongJin

Model Number : M27 series

Certification : RoHS

Place of Origin : Guangdong, China

Product Name : M27 series

Material : PET

High Light : SMT splice tape, Best Quality smt splice tape, SMD splicing tape, Customized SMT splice tape, SMT anti-static splice tape

Contact Now

Conductive Red Splicing Tape SMT Joint Tape With Intelligent Feeder

DESCRIPTION

A similar design for Fuji machines with an intelligent feeder. Each size has placement holes that can

be used with the alignment jigs

APPLICATION	ADVANTAGES
1. Double strips of aluminum foil tape	1. Necessary for Fuji machines with
used to join SMT carrier tapes	an intelligent feeder
2. Possible to use without the splice	2. The silver strip allows the sensor to
tool and clip	detect the splice
3. 32mm-88mm available upon request	3. Placement holes for easy alignment

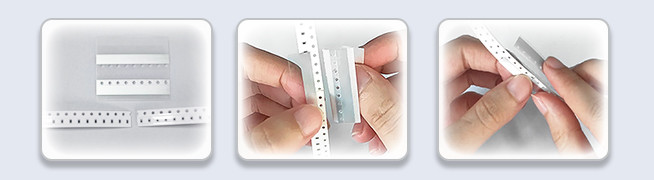

INSTRUCTIONS

1. Use the cutting tool to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the splice tape placement holes.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.

6. Remove and discard the clear plastic cover to complete the splice.
