High Viscosity SMT Splicing Tape PET Material 500pcs/Box M28 Series

Brand Name : KangHongJin

Model Number : M28 series

Certification : RoHS

Place of Origin : Guangdong, China

Product Name : M28 series

Material : PET

High Light : SMT splice tape, Splice Tape SMD, 2023s smt splice tape, SMT special splice tape, SMT anti-static splice tape

Contact Now

M28 series New SMT Double Splice Tape with Conductive Function for FUJI MachineHigh Viscosity SMT Splicing Tape PET Material 500pcs/Box M28 Series



DESCRIPTION

M28 series double splice tape is used for FUJI Machine jointing carrier tapes in the SMT process.

similar design for Fuji machines with an intelligent feeder. Each size has placement holes that can
be used with the alignment jigs. It is made of 2 tapes, release paper and PET material with superior
adhesion.



Part (reel)
Dimensions (pc)
Package
High Viscosity SMT Splicing Tape PET Material 500pcs/Box M28 Series
M2808 (8mm)

7.5/2/5mm x 38mm

500pcs/box
M2812 (12mm) 15.5/2/13mm x 38mm 500pcs/box
M2816 (16mm) 24/2/21mm x 38mm 500pcs/box
M2824 (24mm) 32/2/29mm x 38mm 250pcs/box



APPLICATION ADVANTAGES

1. Double strips of aluminum foil tape

1. Necessary for Fuji machines with

   used to join SMT carrier tapes

   an intelligent feeder

2. Possible to use without the splice

2. The silver strip allows the sensor to

   tool and clip

   detect the splice

3. 32mm-88mm available upon request

3. Placement holes for easy alignment

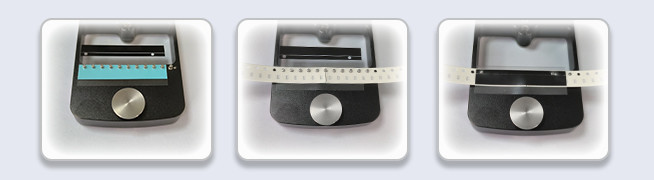

INSTRUCTIONS

1. Use the cutting tool to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the splice tape placement holes.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.

6. Remove and discard the clear plastic cover to complete the splice.



High Viscosity SMT Splicing Tape PET Material 500pcs/Box M28 Series
